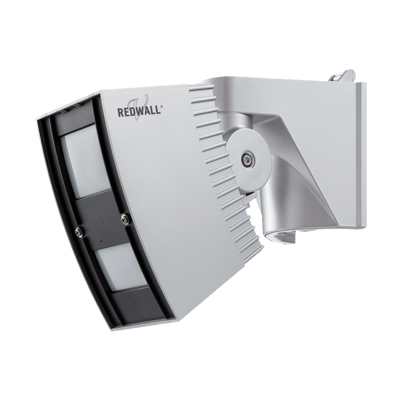

The REDWALL SIP is a series of long range volumetric outdoor PIRs designed to work in conjunction with CCTV systems and trigger camera position to the zone of intrusion. Very stable in outdoor environment the Redwall SIP sensors have a very low false alarm rate and are instrumental for make event-triggered security systems stable. The SIP-404 is a hardwired model providing a detection range of 40x4m (LxW) ideal to protect long and narrow areas such as the areas along commercial buildings.
Designed to trigger CCTV systems
The REDWALL SIP series is designed to be connected to PTZ or fixed dome cameras and trigger the CCTV system when an intrusion occurs. The SIP-404 has two independent detection zones, far and near zones, with independent sensitivity selection, that can trigger the right camera pre-sets and provide the best view of the scene to local security staff or remote monitoring stations.
Weather and vandal-resistant
The SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity are adjusted automatically to the ambient temperature and illuminance and they have a IP65 rating for the main unit. They also vandal-resistant featuring a polycarbonate housing, an accelerometer to detect if the sensor position has been tampered with and an active infrared antimasking.
- 40x4m intelligent PIR for approach detection
- Designed to trigger CCTV systems
- Two independent detection zones far/near
- Active infrared antimasking and vandal-resistant
- Additional Information
Manufacturer Optex Product Type No Box Quantity No
