This is the device of the Fibra wired product line. To purchase, install and administer such devices, you need to be an accredited partner, undergo training and gain access.

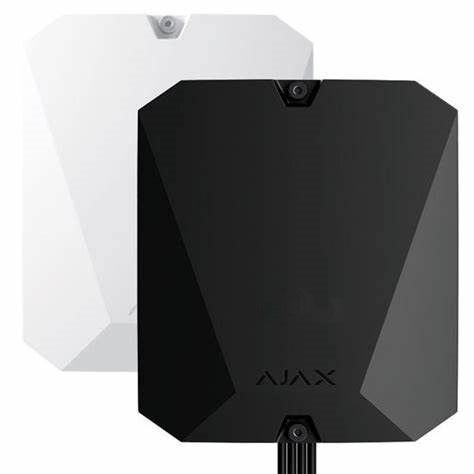

Hybrid control panel Ajax Hub Hybrid (2G) supports wired and wireless devices. GSM, Ethernet, 2 SIM cards (micro SIM 2G), communication range up to 2000 meters via Jeweler radio protocol, support for wired devices of the Fibra line, 868.0-868.6 MHz, connection of up to 100 wired/wireless devices, 25 groups, 25 cameras and video recorders. Power supply 110-240 V, backup battery Li-Ion 7 Ah.
| Device Type | control panel |
| Type of instalation | wall, desktop, ceiling, overhead |
| Intended for use | home, house, office, store, warehouse, production, garage |
| Connection type | wired, wireless |
| Communication range | 2000 m |
| Working frequency range | 868 MHz |
| Number of wired zones | 8 |
| Number of connected wireless devices | 100 |
| Number of groups | 9 |
| Communication channel central panel-sensors | radio channel |
| Communication channel central-router | LAN |
| Alarm channel | GSM, Ethernet |
| Alarm notifications | sms, call, push |
| Number of call/sms alert numbers | 50 |
| Number of SIM-cards | 2 |
| Type of SIM-cards | micro SIM |
| Communication with the security desk | contact ID, SIA |
| Maximum number of users | 50 |
| Arming | smartphone, keypad, keyfob |
| Indication | light |
| Tamper contact | yes |
| Anti-sabotage | protection against fraud, jamming detection, tamper-resistant |
| External device control | control via Ajax WallSwitch, Relay, Socket |
| Remote LED output | no |
| Operating system | OS Malevich |
| Mobile applications | iOS, Android |
| Setup | smartphone, from computer, laptop |
| Remote setup | yes |
| Backup battery | option |
| Battery type | Li-Ion |
| Battery capacity | 7 Ah |
| Special features | support for Jeweler wireless devices and Fibra wired devices |
| Compatibility | with all Ajax devices |
| Operating voltage | 220V AC |
| Consumption | no data |
| Dimensions (WхHхD) | 196х238х100 mm |
| Body color | white/black |
| Body material | plastic |
| Weight | no data |
| Temperature range | -10...+40°C |
| Producing country | Ukraine |
| Device class | middle |
| Manufacturer | Ajax |
|---|---|
| Type of Product | Intruder |
| New Product | Yes |
