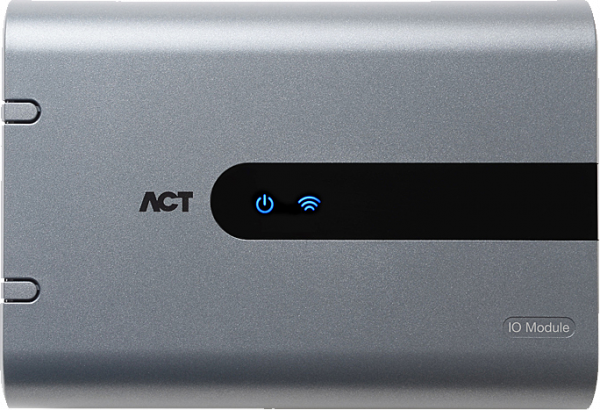

Each Input/Output Module supports 8 inputs and 8 outputs per device. Each ACTpro controller supports up to 4 IO Modules (32 inputs and 32 outputs) The IO Module allows an ACTpro controller to be used in applications where signaling to other equipment is required. Example of this is elevator controls, alarm systems, CCTV, switching applications, IO Mapping.
| Power consumption: | 300 mA |
| Operating temperature: | -10 ~ +50 °C |
| Installation: | Surface (Indoor) |
| Dimensions (L x W x H): | 110 x 190 x 60 (mm) |
| Operating voltage: | 12 VDC |
| Weight: | 0.375 kg |
| Manufacturer | Vanderbilt |
|---|---|
| Type of Product | simple |
| New Product | No |
