Maxhub
| Display | |
| Diagonal Size(inch) | 86 |
| Backlight | Direct-lit LED |
| Panel Technology | VA |
| Aspect Ratio | 16 : 9 |
| Resolution | 3840 x 2160 |
| Response Time | 8ms |
| Brightness (typ) | 350cd/m² |
| Contrast Ratio | 4000 : 1 |
| Viewing Angle | 178°/178° |
| Colour Gamut (typ) | 90% NTSC |
| Display Orientation | Landscape |
| Operating Hour | 16/7 |
| Dimension & Weight | |
| Product Dimensions (WxHxD) | 1969 x 1184 x 97 mm 77.52 x 46.61 x 3.82 inch |
| Shipping Dimensions (WxHxD) | 2121 x 1304 x 225 mm 83.50 x 51.34 x 8.86 inch |
| Net Weight (kg /pounds) | 60.6kg / 133.6 pounds |
| Gross Weight (kg /pounds) | 81.5kg / 179.68 pounds |
| Wall Mount (VESA) | 800 x 600mm / 31.50 x 23.62inch |
| Screws For VESA | M8 x 25mm / M8 x 0.99inch |
| Power | |
| Power Supply | AC100-240V,50/60Hz |
| Max Power Consumption | 450W |
| Standby | =0.5W |
| Touch System | |
| Touch Sensor | IR |
| Accuracy | ±1mm |
| Max Touch Points Supported | 20 |
| Object Recognition Range | =2mm |
| Glass | Zero parallax , 3mm Angi-glare, Antibacterial |
| Supported Operating System(Touch Return) | Windows10/Windows8/Windows7/WindowsXP/Android/Linux/Mac OS X/Chrome OS |
| Camera/Audio/Microphone | |
| Built-in Camera | Yes , Dual Camera 48MP(ï¬xed lens)+8MP(with 3x optical zoom) |
| Camera Features | Auto Frame / Speaker Tracking |
| Built-in Speakers | 2.1 Channel , 10W x 2 + 20W |
| Microphone Array | 8 x Far-ï¬eld , beam-forming microphone - max 12m range |
| Connectivity | |
| Input | HDMI IN x 1 , USB 2.0 x 1, USB 3.0 x 2, TOUCH 2.0 x 1 , USB Type-C x 2 |
| Audio | Audio out x 1 |
| Control | RS232 x 1 |
| PC Module Slot | Yes, 3840 x 2160@60fps |

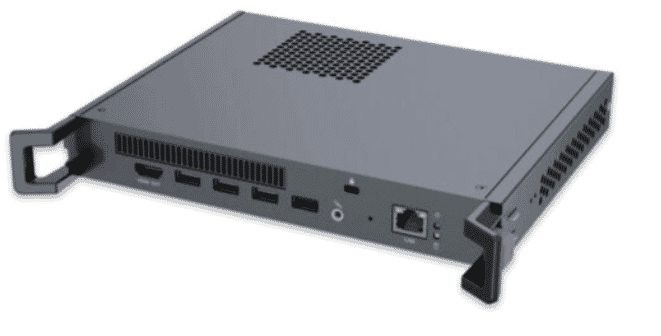

| PC Module | MAXHUB PC Module |
| Wi-Fi Module | SI06 |
| Environment | |
| Operating Temperature | 0„ƒ~40„ƒ |
| Storage Temperature | 10%~90%RH |
| Operating Humidity | -20„ƒ~60„ƒ |
| Storage Humidity | 10%~90%RH |
| What's In The Box | |
| Contents | Power Cord, 1 x Wi-Fi module, 2 x Passive Stylus, 1 x Wall Mount, 1 x Type-C Cable (1.8m | 70.9inch) |
