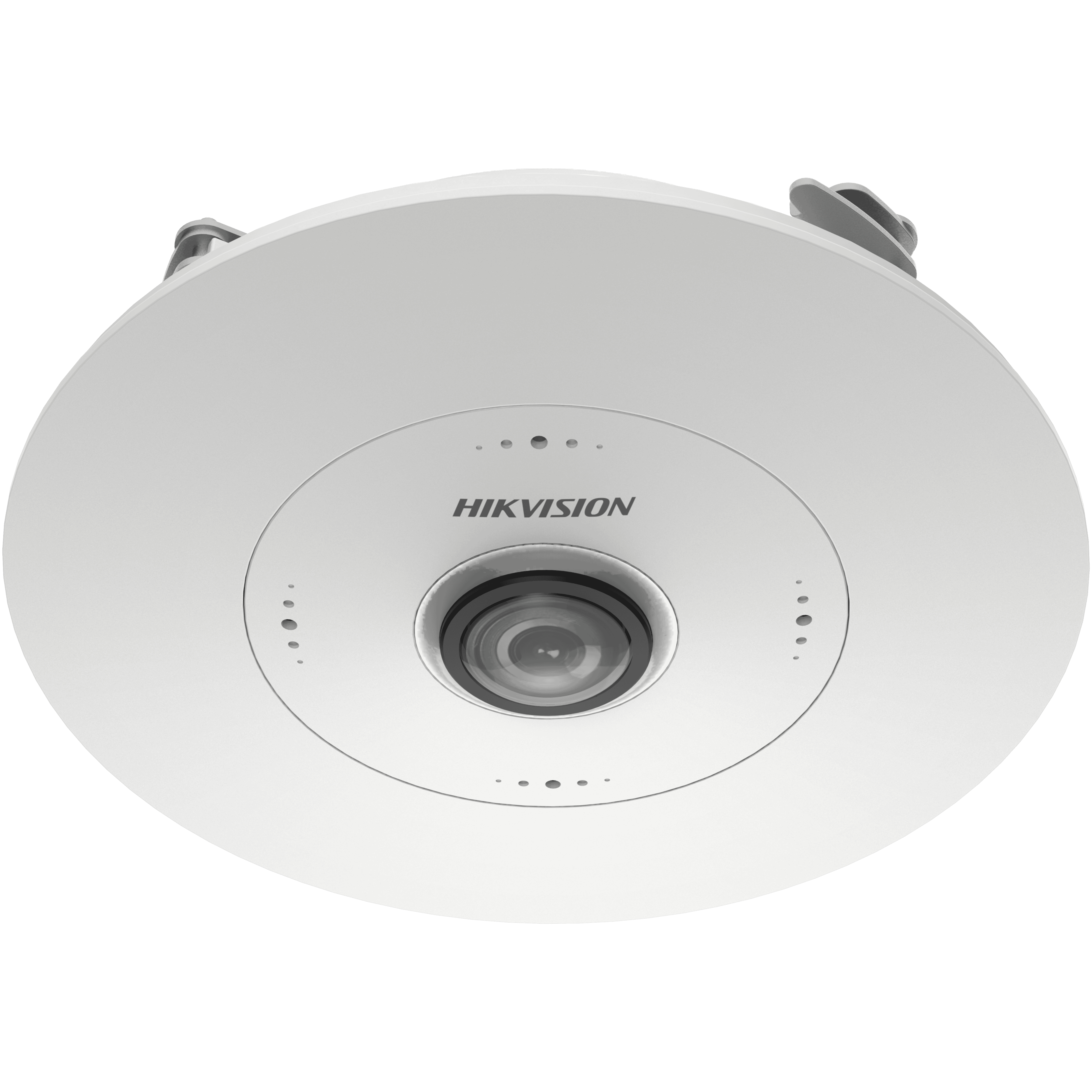

The Hikvision DS-2CD3T87G2P-LSU/SL(4mm)(C) is a professional IP Camera built for modern CCTV installations, with support up to 8 MP where specified. Designed for reliability and ease of integration, this IP Camera is suitable for a wide range of security applications.Features:• High quality imaging with 8 MP resolution• One image that presents all the scenes covered by the camera• 24/7 colorful imaging• Efficient H.265+ compression technology• Clear imaging against strong back light due to 130 dB WDR technology• Focus on human and vehicle classification based on deep learning• Active strobe light and audio alarm to warn intruders off• Water and dust resistant (IP67)• Specification Camera Image Sensor 2 × 1/1.8" Progressive Scan CMOS• Max. Resolution 5120 × 1440 Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light Shutter Time 1/3 s to 1/100,000 s Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° Lens Lens Type Fixed focal lens, dual lens: 4 mm Focal Length & FOV 4 mm, horizontal FOV 180° ± 10°, vertical FOV 44° Lens Mount M16• Iris Type Fixed Aperture F1.0 Depth of Field 3.6 m to 8 DORI DORI 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m Illuminator Supplement Light Type White Light Supplement Light Range Up to 40 m• Smart Supplement Light Yes Video• When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) Main Stream 60 Hz: 15 fps (5120 × 1440)• When WDR is Off: 50 Hz: 20 fps (5120 × 1440) 60 Hz: 20 fps (5120 × 1440)• When WDR is On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272) Sub-Stream 60 Hz: 15 fps (1920 × 536, 960 × 272)• When WDR is Off: 50 Hz: 20 fps (1920 × 536, 960 × 272) 60 Hz: 20 fps (1920 × 536, 960 × 272)• Video Compression Main stream: H.265+/H.265/H.264+/H.264,• Sub-stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 16 Mbps• H.264 Type Baseline Profile, Main Profile, High Profile• H.265 Type Main Profile Bit Rate Control CBR, VBR• Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream Audio Audio Type Mono sound• Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
