| Specifications | |

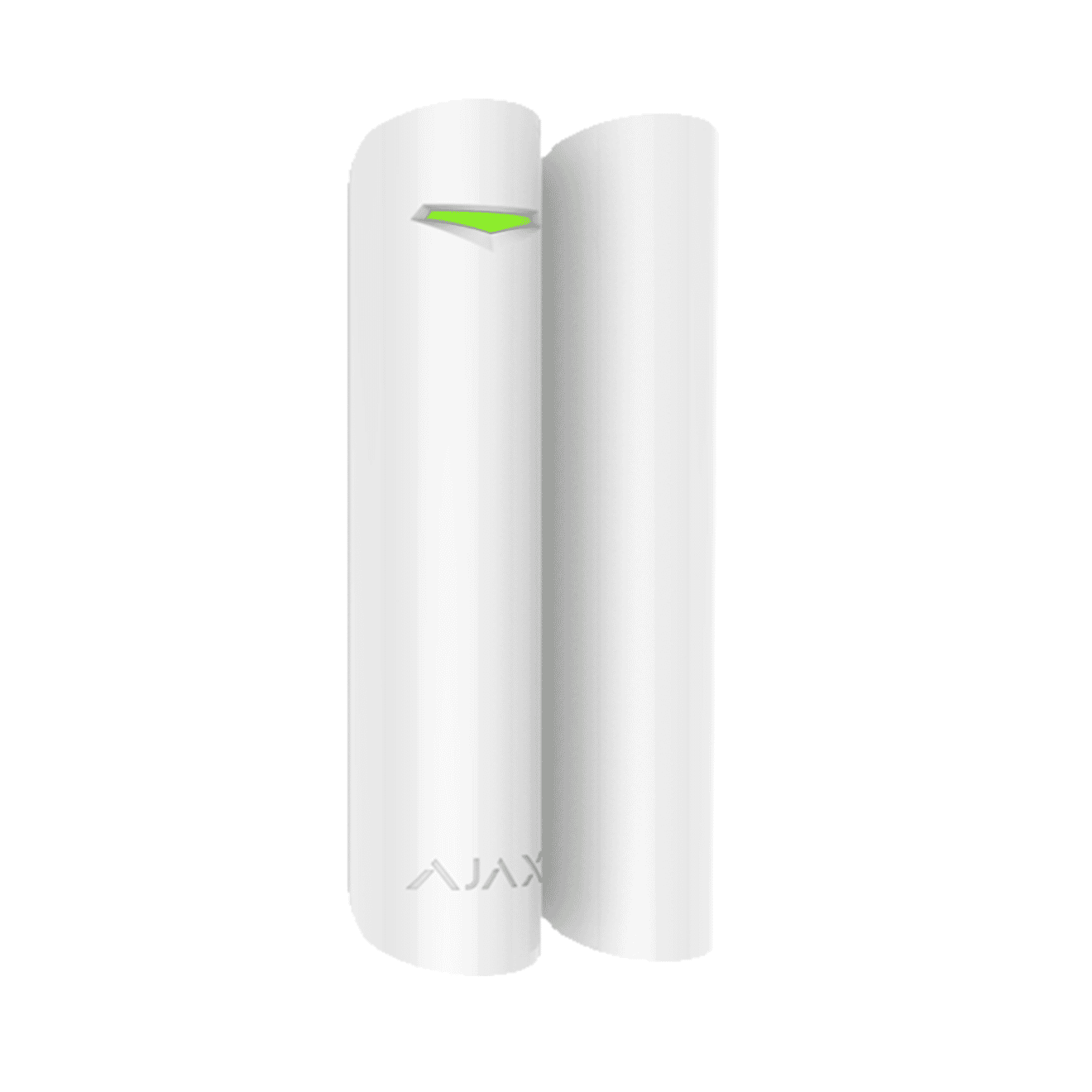

| Classification | Combined point magnetic contact and vibration radio channel security detector |
| Type of detector | Wireless |
| Installation method | Indoors |
| Compatibility | Operates with all Ajax hubs and range extenders |
| Sensing element | Reed switch, accelerometer |
| Alarm signal delivery time | 0.15 s |
| Activation threshold | Small magnet - 1 cm Big magnet - 2 cm Tilt: more than 5° |
| Power supply | Battery: CR123A battery, 3 V |
| Battery life | Up to 5 years |
| Sensor resource | 2,000,000 openings |
| Jeweller radio technology | Communication range with central unit - up to 1,200 m in an open space Two-way communication between devices Radio frequency bands: 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz (Depends on the region of sale) Self-adjusting RF output power - up to 20 mW Block encryption based on AES algorithm Detector polling period - 12ˆ’300 s |
| Temperature sensor | Available |
| Operating temperature range | From -10°Ð¡ to +40°Ð¡ |
| Permissible humidity | Up to 75% |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Remote setting and testing | + |
| Dimensions | Diameter: 20 mm Height: 90 mm |
| Weight | 29 g |
| Warranty | Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty. |
| Service life | 10 years |
| Complete set | DoorProtect Plus opening detector SmartBracket mounting panel Two magnets CR123A battery (pre-installed) External contact Installation set User's guide |
