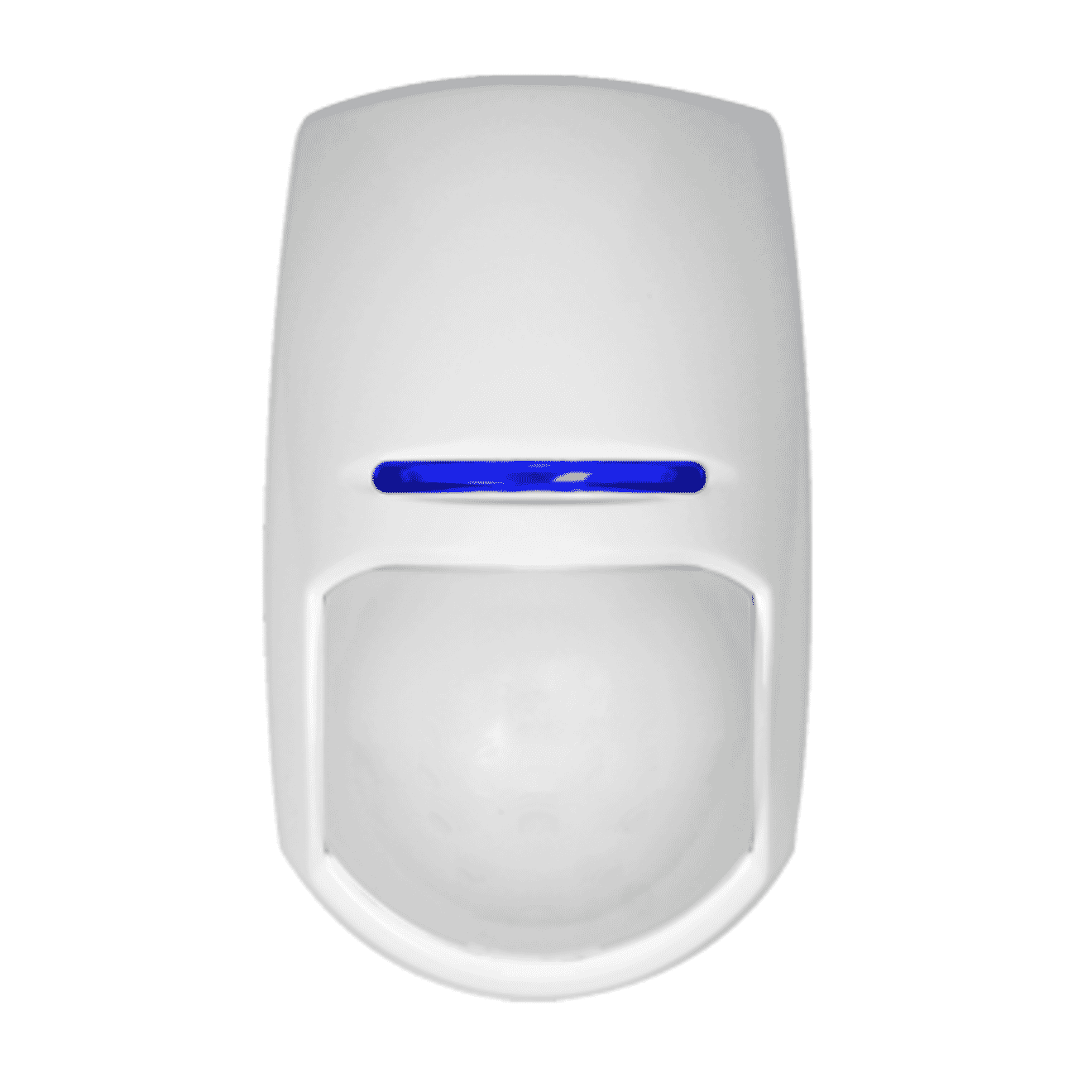

Detectors technical characteristics
| Blue Wave technology | Yes |
| Automatic sensitivity | Yes |
| Set sensitivity | Yes (Low) |
| Digital temperature compensation | Yes |
| DEOL resistor on board | Yes |
| Tamper protection | Front |
Detectors technical characteristics
| Maximum range | 10m |
| Animal immunity | Up to 24kg |
| Detection speed | 0.3- 3.0m/s |
| Coverage angle | 85 degree |
| Detection zones | 52 |
| Detection planes | 5 |
| Detection method | Digital quad signal processing |
Mounting
| Wall mounted | Bracket included |
| Ceiling mounted | Bracket included |
| Optimum coverage height | 1.8 - 2.4m |
| Certified mounting height | 2.4m |
Environmental and operating features
| Storage temperature | -40C to +80C |
| Certified operating temperature | -10C to +40C |
| Physical dimensions (H x W x D) | 117 x 69 x 50mm |
Electrical & battery
| Operating voltage | 9-16V DC 13.8V DC typical |
| Quiescent current consumption | 13mA @ 12V (Min), 16mA @ 12V (Max) |
| Contact Resistance | <10 ohms |
| Relay outputs | 50mA 60 VDC, 42 VAC (RMS) |
| Tamper switch | 12V 50mA |
Certifications and warranty
| Electrical conformity | CE |
| EN Certificate | EN50131-2-2:2008, EN50131-1:2006+A1:2009, PD6662:2010 |
| Certification type | IMQ |
| Certificate number | CA12.01173 |
| Environmental class | II |
| Warranty | 5 years |
| Security Grade | Grade 2 |
