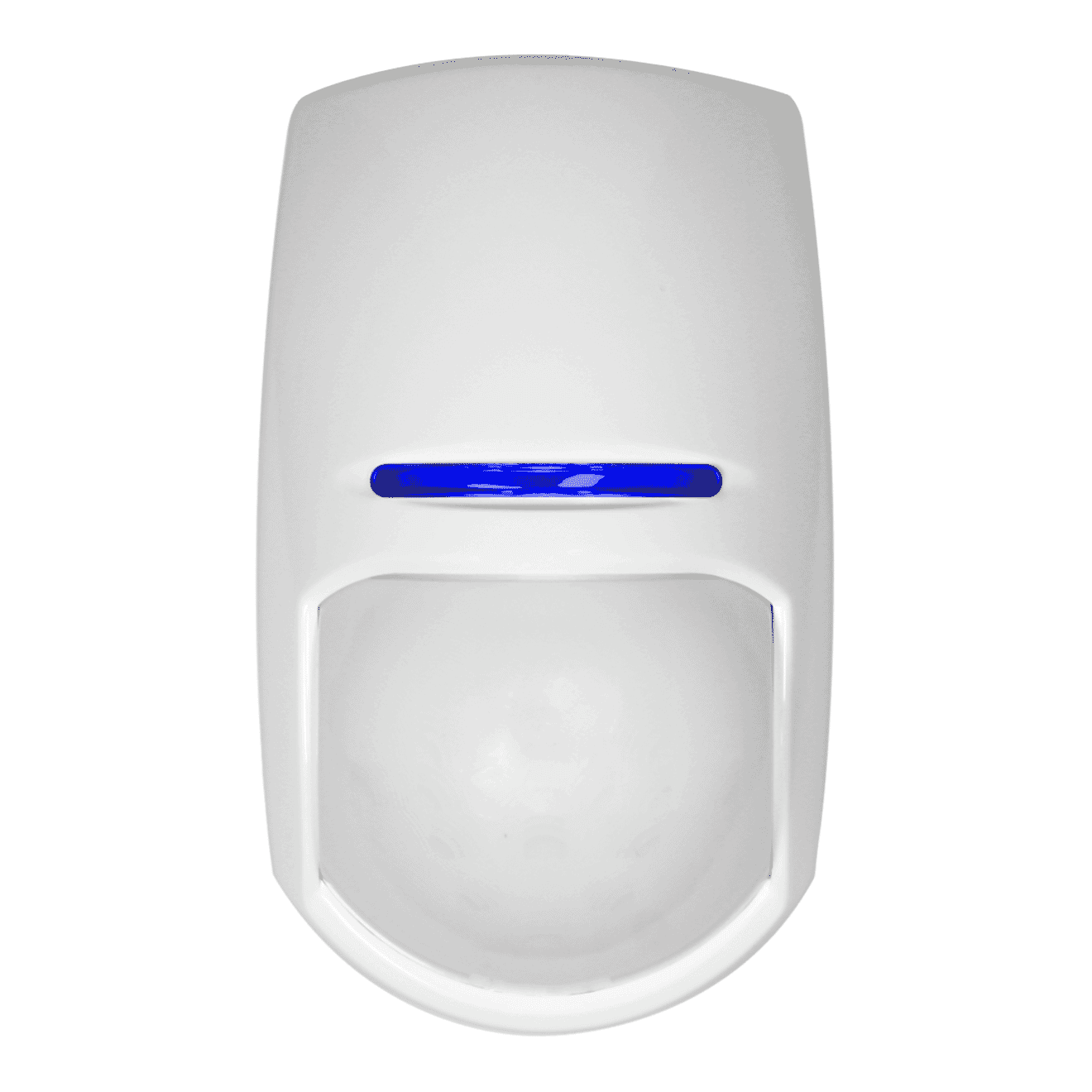

Pyronix
| Detectors technical characteristics | |
| Blue Wave technology | Yes |
| Automatic sensitivity | Yes |
| Set sensitivity | Auto, High or Low |
| DEOL resistor on board | Yes |
| Tamper protection | Front |
| Detectors technical characteristics | |
| Maximum range | 15m |
| Volumetric coverage | Yes |
| Detection speed | 0.3- 3.0m/s |
| Coverage angle | 85 degree |
| Detection zones | 60 |
| Detection planes | 7 |
| Protection of area under the detector (creep zone) | Yes |
| White light filter | 6500 Lux |
| Protection | Ultraviolet light filter |
| Lens | 3 dimensional |
| Optics | Sealed optics |
| Detection method | Low noise dual element pyroelectric sensor |
| Mounting | |
| Wall mounted | Bracket included |
| Ceiling mounted | Bracket included |
| Optimum coverage height | 1.8 - 2.4m |
| Certified mounting height | 2.4m |
| Environmental and operating features | |
| Storage temperature | -40C to 80C |
| Certified operating temperature | -10C to 40C |
| Nominal operating temperature | -30C to 70C |
| Physical dimensions (H x W x D) | 117 x 69 x 50mm |
| Weight | 125g without bracket |
| Electrical & battery | |
| Operating voltage | 9-16V DC 13.8V DC typical |
| Quiescent current consumption | 13mA @ 12V (Min), 16mA @ 12V (Max) |
| Contact Resistance | <10 ohms |
| Relay outputs | 50mA 60 VDC, 42 VAC (RMS) |
| Tamper switch | 12V 50mA |
| Certifications and warranty | |
| Security Grade | Grade 2 |
| Environmental class | II |
| EN Certificate | EN50131-2-2:2008 | EN50130-4:2011 | EN50130-5:2011 | PD6662:2010 |
| Certification type | IMQ |
| Certificate number | CA12.01171 |
| Electrical conformity | CE |
| Warranty | 5 years |
