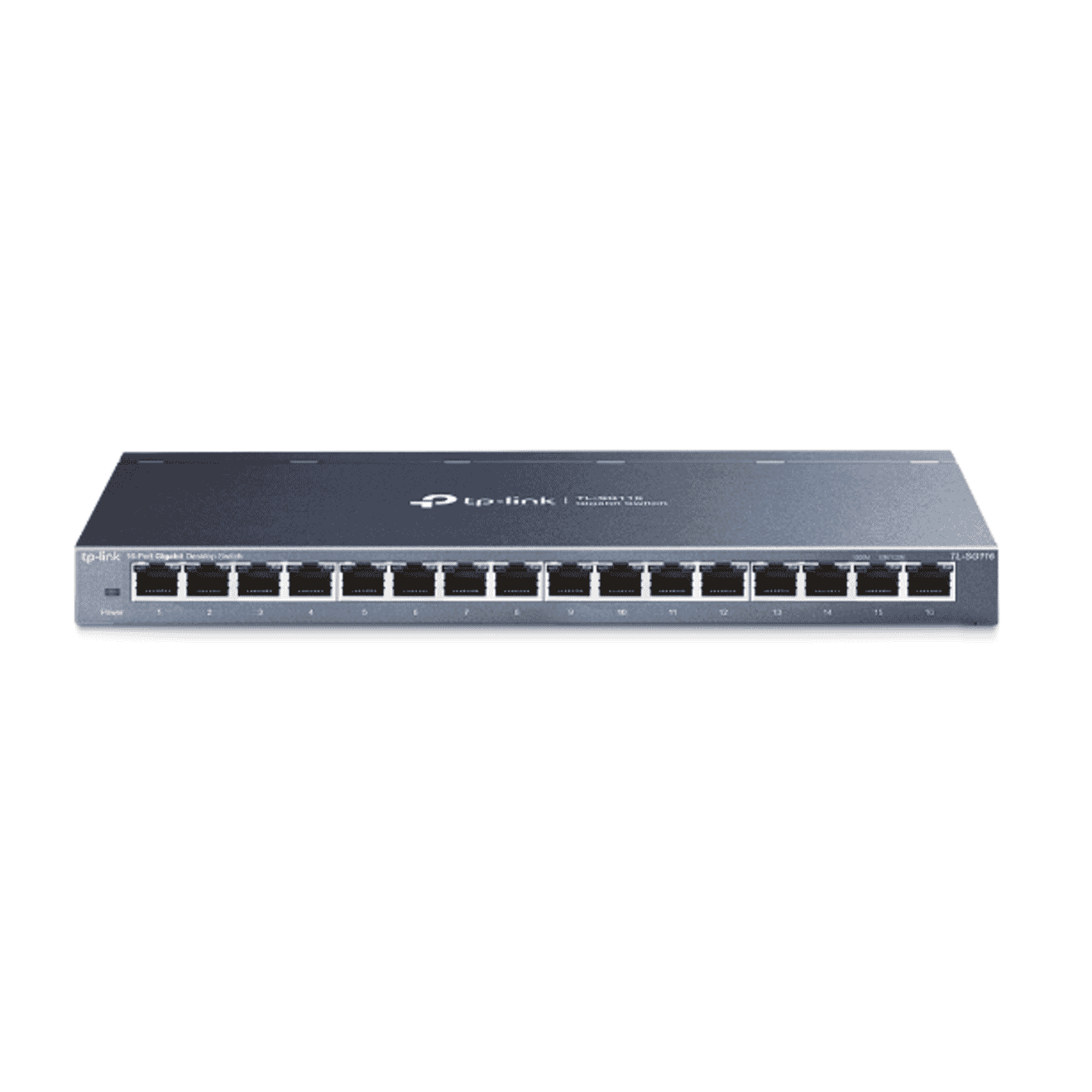

TP-Link TL-SG116 16-Port Gigabit Desktop Switch

Product Code: ITM001303

UPC: TL-SG116

Login to View Price

Device Ports 16
PoE Ports 0
Uplink Ports 0
Device Port Speed 10/100/1000 Mbps
Uplink Port Speed 10/100 Mbps
Managed No

Online Availability

3

In stock

Specifications Resources

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
Interface	16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity	Fanless
Physical Security Lock	Yes
Max. Power Consumption	Maximum: 10.0W
External Power Supply	External Power Adapter (Output: 12VDC / 1.0A)
LED	System Power Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )	11.26 x 4.4 x 1.0 in. (286111.725.4 mm)
Max. Power Consumption	10W(220V/50Hz)
Max. Heat Dissipation	34.12BTU/h

PERFORMANCE
Packet Forwarding Rate	23.8Mpps
MAC Address Table	8K
Packet Buffer Memory	4.1Mb
Jumbo Frame	10KB

SOFTWARE FEATURES
Advanced Features	Green Technology 802.3X Flow Control 802.1p/DSCP QoS IGMP Snooping
Transmission Method	Store and Forward

OTHERS
Certification	CE, FCC ,RoHS
Package Content	16-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Rubber Feet
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing
