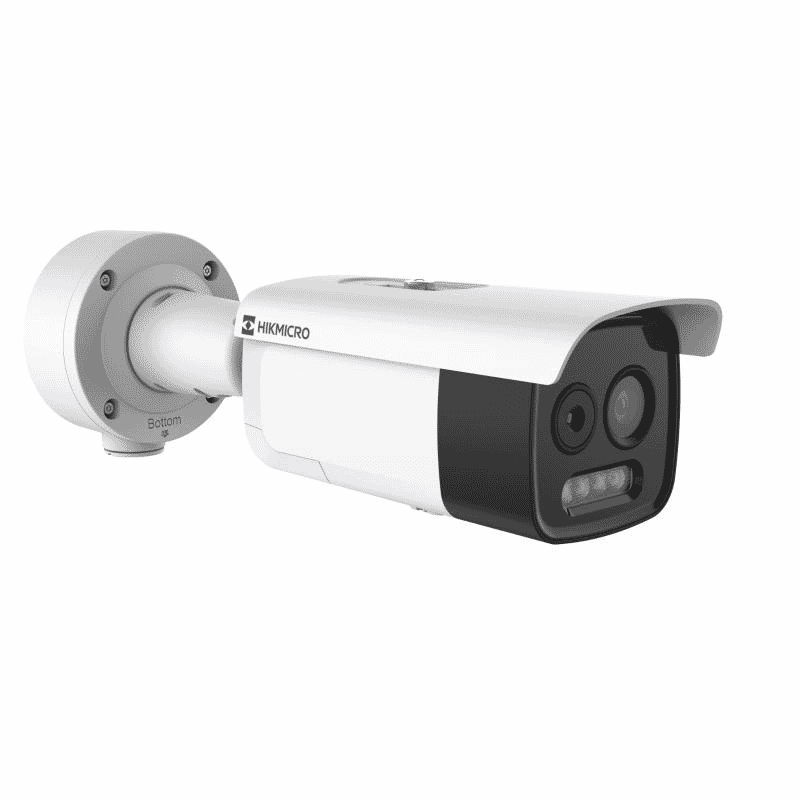

The Hikvision HM-TD2618-7/G0/T1A is a professional Thermal built for modern CCTV installations. Designed for reliability and ease of integration, this Thermal is suitable for a wide range of security applications.Features:• protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas, communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.• 160 × 120 resolution, 12 µm, VOx UFPA, NETD =25 mK (25°C, F1.0)?• Video content analysis 3.0 (VCA3.0): high accuracy vehicle/human detection and classification?• Support smart hybrid light: white light, IR and smart mode?• Temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F), ± 8°C (± 14.4°F)?• Support fire point detection algorithm?• Support smoking detection algorithm?• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR?• High quality detector with 10 years guarantee?• Specifica tion Thermal Module Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays• Resolution 160 × 120 Pixel Pitch 12 µm Spectral Range 8 µm to 14 µm NETD =25 mK (25 °C, F1.0) Focal Length 6.9mm IFOV 1.74mrad Field of View 24.9 ° × 18.7° (H × V) Min. Focusing 1 m Distance Aperture F1.0 Digital Zoom ×2, × 4 Optical Module Image Sensor 1/2.7" Progressive Scan CMOS• Resolution 5MP, 2688 × 1944• Min. 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR Illumination Shutter Speed 1 s to 1/100,000 s Focal Length 8 mm Field of View 39.4 ° × 22° (H × V) Aperture F1.6 (Range)• WDR 120 dB Image Effect Bi-spectrum Display the details of optical channel on thermal channel Image Fusion Picture in Display partial image of thermal channel on the full screen of optical channel Picture Target Yes. Supported in white hot and black hot mode. Coloration Illuminator• Light Hybrid (IR, White light or Smart mode) Supplement• IR Distance Up to 60m Audible and Visual Alarm White Light Up to 60 m Range Visual Alarm Yes. White light alarm with adjustable flashing frequencies Yes, for two types of audible alarm (VCA and Temperature Exception) Audio alarm 2 preset voice alerts (one for each) 6 importable user -defined voice alerts (6 options shared in the two types)• Smart Function VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. Temperature 3 temperature measurement rule types (point, area, line), 21 rules in total Measurement Temperature -20 °C to 150 °C (-4 °F to 302 °F) Range Temperature ±8°C (±14.4°F) Accuracy• Fire Detection Dynamic fire detection, up to 10 fire points detectable Video and Audio Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Main Stream Optical: 50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Sub-stream Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)• Video Main S tream: H.265/H.264• Compression Sub-Stream: H.265/H.
Hikvision
