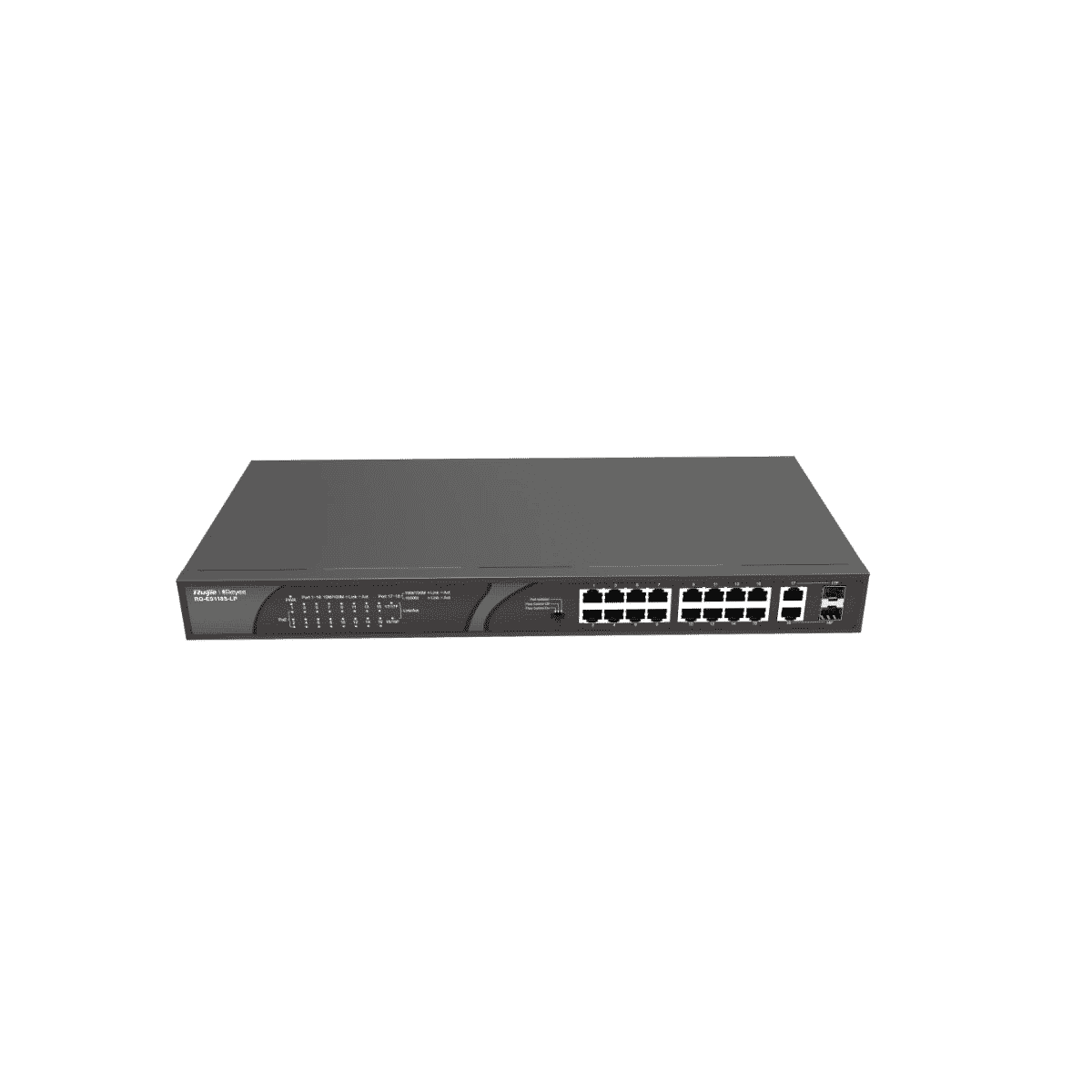

| Specifications | |
| Downlink Ports | 16 x 10/100BASE-TX |
| Uplink Ports | 2 x 10/100/1000BASE-T with 1 Combo port |
| PoE/PoE+ ports | 16 |
| Max. PoE budget | 120W |
| Layer Type | Unmanaged |
| Switching capacity | 7.2 Gbps |
| Forwarding rate | 5.36 Mpps |
| MAC address table | 8000 |
| Dimensions (W x D x H) | 440 mm x 208 mm x 44 mm |
| Weight (With package) | 3.4 kg |
| Warranty | 3 Years |
| Software Features | |
| 10/100/1000M Auto/Full/Half Duplex Negotiation | Yes |
| Flow Control | Yes |
| Auto MDI/MDIX | Yes |
| Switching model | Store-and-forward |
| Cloud Management | Cloud monitoring |
| Physical Features | |
| Reset Button | N/a |
| Flow Control | Yes |
| Port Isolation | Yes |
| Power Consumption | <148W |
| Power Supplies | 100V AC to 240V AC, 2.5A |
| Surge Protection | 6kV |
| Fan | Fanless |
| Operating Temperature | 0°C to 45°C (32°F to 109°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| MTBF | > 200,000 |
| Certificate | CE, RoHS |
| Package Contents | |
| Mounting bracket | - |
| Foot pad | - |
| Screw (M3X6) | 8 |
| Power cord | 1 |
| Quick Start Guide | 1 |
| Warranty Card | 1 |
| Dimensions | 440 mm x 208 mm x 44 mm |
| Package Weight | 3.40 kg |
