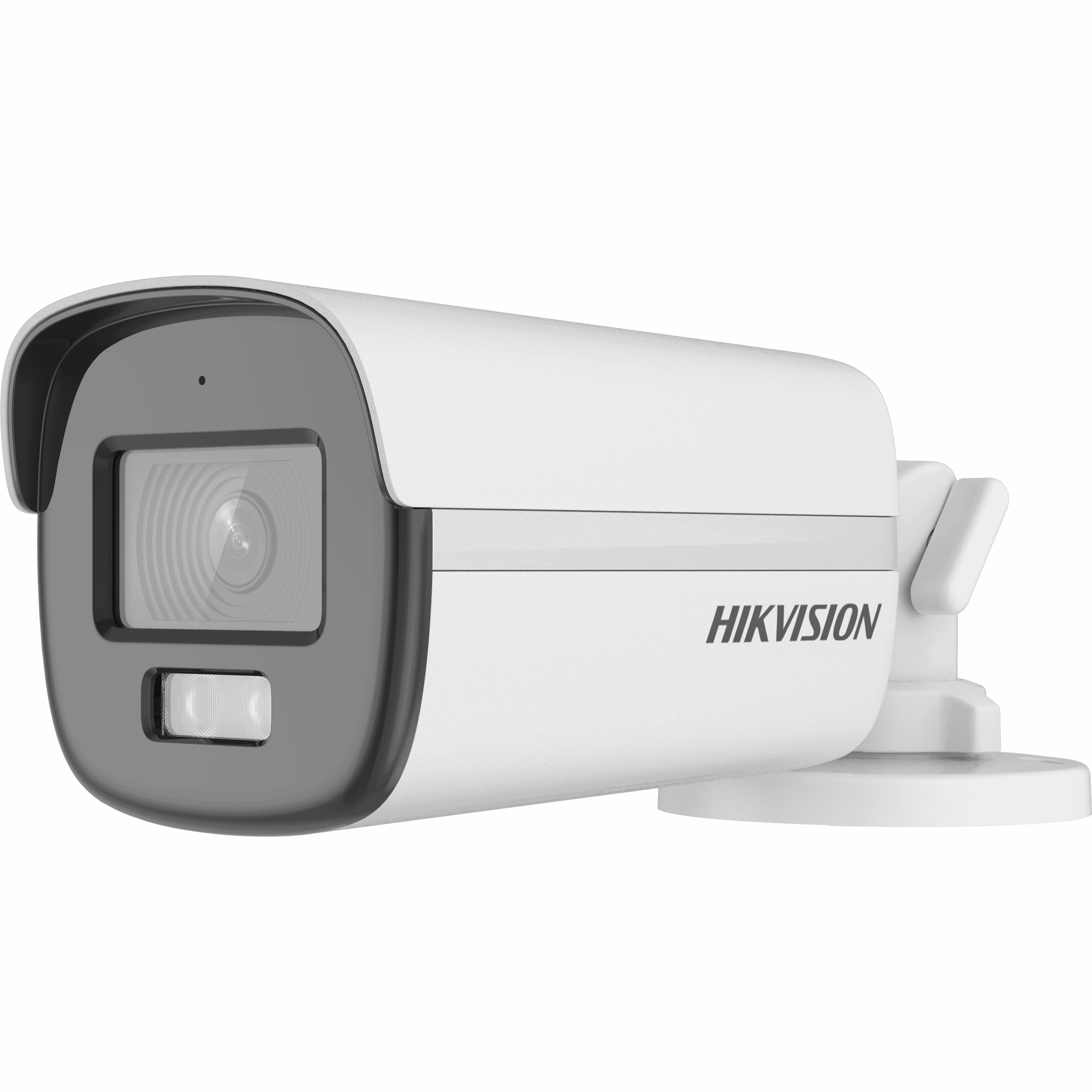

Hikvision
| Camera | |
| Image Sensor | 3K CMOS |
| Signal System | PAL/NTSC |
| Resolution | 2960 (H) x 1665 (V) |
| Frame Rate | TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC |
| Min. Illumination | 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm fixed focal lens |
| Field of View | 2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143° 3.6 mm, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112° |
| Lens Mount | M12 |
| Light Alarm | Solid Light Alarm (White Light) |
| Day & Night | ICR |
| WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | IR: Up to 40 m White Light: Up to 40 m |
| Smart Supplement Light | Yes |
| Image | |
| White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| Day/Night Mode | Auto |
| White Balance | Auto/Outdoor/Global/Manual |
| AE (Auto Exposure) Mode | HLS; DWDR; BLC; HLC; Global |
| Noise Reduction | 2D DNR |
| Language | English |
| Function | Smart IR; Brightness; Sharpness; AGC; Anti-Banding |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Audio In | Built-in mic |
| General | |
| Power | 12 VDC ± 25%, max.5.2 W,*You are recommended to use one power adapter to supply the power for one camera. |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing) |
| Protection Level | IP67 |
| Material | Metal |
| Communication | HIKVISION-C |
| Dimension | 194.2 mm x 78 mm x 74.5 mm (7.65" x 3.07" x 2.93") |
| Weight | Approx. 500 g (1.1 lb.) |
