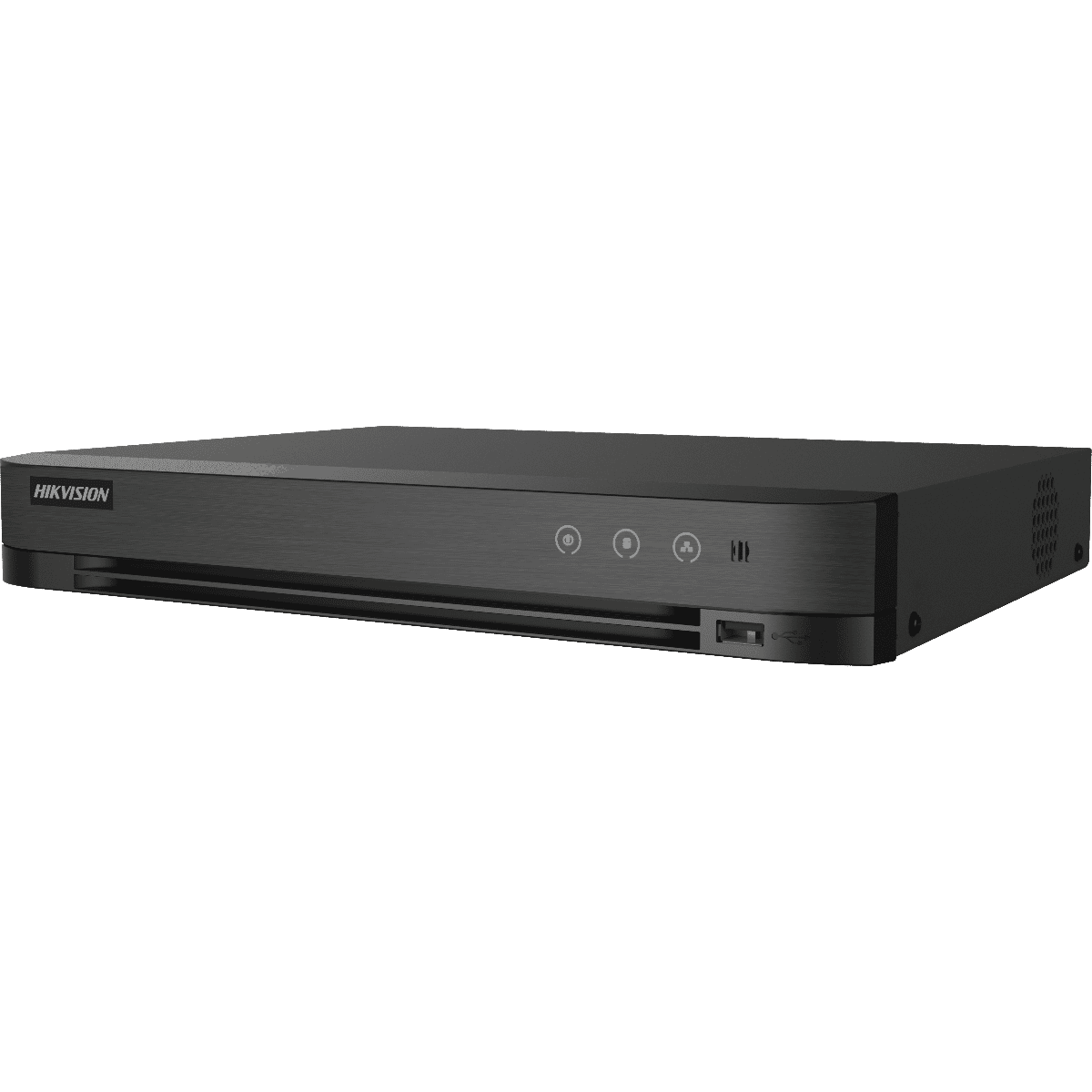

Hikvision iDS-7204HUHI-M1/X 4-Channel 4K PoC DVR, Up to 8MP, 4TB Storage

Mouse over the image to zoom. Double-tap and hold to zoom.

Hikvision iDS-7204HUHI-M1/X 4-Channel 4K PoC DVR, Up to 8MP, 4TB Storage

Product Code: ITM005116

UPC: iDS-7204HUHI-M1/X/4TB

HDD Order Policy

Due to a shortage of HDDs:
• Orders of more than 10 HDDs in a single day will be automatically rejected.
• If the HDD quantity exceeds the total NVR/DVR quantity in the order, the order will also be automatically rejected.

Login to View Price

Hikvision iDS-7204HUHI-M1/X 4-Channel 4K PoC DVR, Up to 8MP

Hikvision iDS-7204HUHI-M1/X 4-Channel 4K PoC DVR, Up to 8MP, 6TB Storage

Hikvision iDS-7204HUHI-M1/X 4-Channel 4K PoC DVR, Up to 8MP, 8TB Storage

PoC No
Channels 4

Online Availability

0

Out of stock

Specifications Resources

Facial Recognition
Face Picture Library	Up to 16 face picture libraries
Face Picture Comparison	Face picture comparison, face picture search; 2-ch face picture comparison alarm (HD analogue camera)
Perimeter Protection
Human/Vehicle Analysis	Up to 4-ch
Video and Audio
IP Video Input	2-ch (up to 6-ch) Up to 8 MP resolution IP enhanced mode on: 4-ch (up to 8-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input	4-ch BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
HDMI Output	1-ch, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz HDMI/VGA simultaneous output
VGA Output	1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz HDMI/VGA simultaneous output
CVBS Input	PAL/NTSC
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
Synchronous Playback	4-ch
HDTVI Input	8 MP(3840 x 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input	5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input	8 MP(3840 x 2160)@12/15 fps, 3K(2880x1620)@25/20fps, 5 MP(2592 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Output	1-ch, RCA (Linear, 1 KO)
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KO):4-ch via coaxial cable
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input)
Recording
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate	32 Kbps to 10 Mbps
Dual-stream	Support main stream or sub stream
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Network
Total Bandwidth	96 Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF
Remote Connection	32
Network Interface	1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA	1 SATA interface
Capacity	up to 12 TB capacity for each disk
Serial Interface	RS-485 (half-duplex)
USB Interface	Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0
Alarm In/Out	N/A
General
Power Supply	12 VDC, 1.5 A
Consumption	= 10 W (without HDD)
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Dimension (W x D x H)	319 x 235 x 48 mm (12.6 x 9.3 x 1.9 inch)
Weight	= 1.16 kg (2.6 lb)
