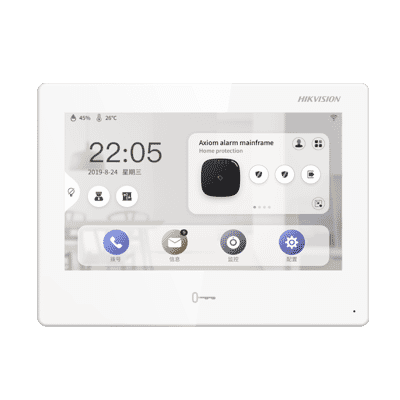

Hikvision
| System parameters | |
| Operating system | Embedded Android operation system |
| ROM | 8 GB Emmc |
| RAM | 2 GB |
| CPU | Embedded processor |
| Display parameters | |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 x 600 |
| Video parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| WDR | / |
| Video compression standard | / |
| Focal length | / |
| Audio parameters | |
| Audio compression standard | G.711 U, G.711 A |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Event capacity | 200 |
| Notice capacity | 16 |
| Linked indoor extensions capacity | 16 |
| Network parameters | |
| Communication protocol | TCP/IP, SIP, RTSP |
| Wired network | Support |
| Wi-Fi standard | Wi-Fi 802.11 b/g/n |
| Bluetooth version | / |
| 3G/4G standard | / |
| Zigbee | / |
| Device interfaces | |
| Alarm input | 8 |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| TAMPER | / |
| RS-485 | 1 |
| TF card | Reserved |
| Alarm output | 1 relay output, 1 alarm output |
| Power interface | 1 |
| General | |
| Button | / |
| Installation | Surface mounting |
| Indicator | / |
| Weight | Without package: 419.3 g With package: 694 g |
| Protective level | / |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
| Dimensions | 187 mm x 137 mm x 25.7 mm (7.36" x 5.39" x 1.01") |
| Battery | / |
| Power supply | IEEE802.3af, standard PoE 12 VDC, 1 A |
| Application environment | Indoor |
| Power consumption | = 8 W |
| Language | English, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Arabic, Ukrainian, Mongolian |
