Ajax
| Compatibility | |
| Control panels | Hub Plus Hub 2 (2G) Hub 2 (4G) Hub 2 Plus Hub Hybrid (2G) Hub Hybrid (4G) |
| Range extenders | ReX ReX 2 |
| Communication | |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Instant notifications. Remote configuration in the Ajax apps. |
| Frequency bands | 868.0€“868.6 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation | GFSK |
| Radio signal range | up to 1,200 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication | All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming. |
| Detection | |
| Sensitive elements | PIR sensor |
| Motion detection distance | up to 12 m When installed at the height of 2.4 m. |
| Motion detection angles | horizontal: 88.5° |
| Motion detection speed | from 0.3 to 2 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity | 3 levels Adjusted by PRO or user with admin rights in the Ajax app. |
| Pet immunity | weight: up to 20 kg height: up to 50 cm |
| False alarm prevention | SmartDetect Software algorithm. |
| Temperature compensation | Effective motion detection at temperatures from ˆ’10°C to +40°C. |
| Recommendations | It is recommended to install the detector at a height of 2.4 m The device is designed for indoor use only. |
| Glass break detection | |
| Sensitive elements | electret microphone |
| Glass break detection distance | from 0.3 up to 9 m |
| Glass break detection angles | horizontal: 180° vertical: N/A |
| Sensitivity | 3 levels Adjusted by PRO or user with admin rights in the Ajax app. |
| False alarm prevention | DualTone Two-factor glass break verification software algorithm: by low and high frequencies. |
| Glass break characteristics | |
| Min size of the glass | 400 x 400 mm Detection distance up to 9 m for all glass types when the High sensitivity level is selected. |
| Type of glass and its thickness: | standard pane €” 4 mm insulated glass €” 4 mm |
| Sabotage protection | |
| Tamper alarm | Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. |
| Holding screw | to secure the detector on SmartBracket |
| Protection against spoofing | device authentication |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Power supply | |
| Battery | 1 x CR123A Pre-installed. |
| Type | Type C. |
| Calculated battery life | up to 5 years |
| Detector€™s operating voltage range | 2.1ˆ’3.3 VŽ“ |
| Detector€™s nominal operating voltage | 3 VŽ“ |
| Quiescent detector€™s current consumption at nominal voltage | 0.034 mA |
| Maximum detector€™s current consumption at nominal voltage | 58 mA |
| Full capacity | 1,600 mAh |
| Low battery voltage | 2.5 VŽ“ |
| Low battery recovery voltage | 2.7 VŽ“ |
| End of life battery voltage | 2.1 VŽ“ |
| End of life battery capacity | 300 mAh |
| Manufacturer | Panasonic |
| Enclosure | |
| Dimensions | 110 x 65 x 50 mm |
| Weight | 92 g |
| Operating temperature range | from -10°C to +40°C |
| Operating humidity | up to 75% |
| Protection class | IP50 |

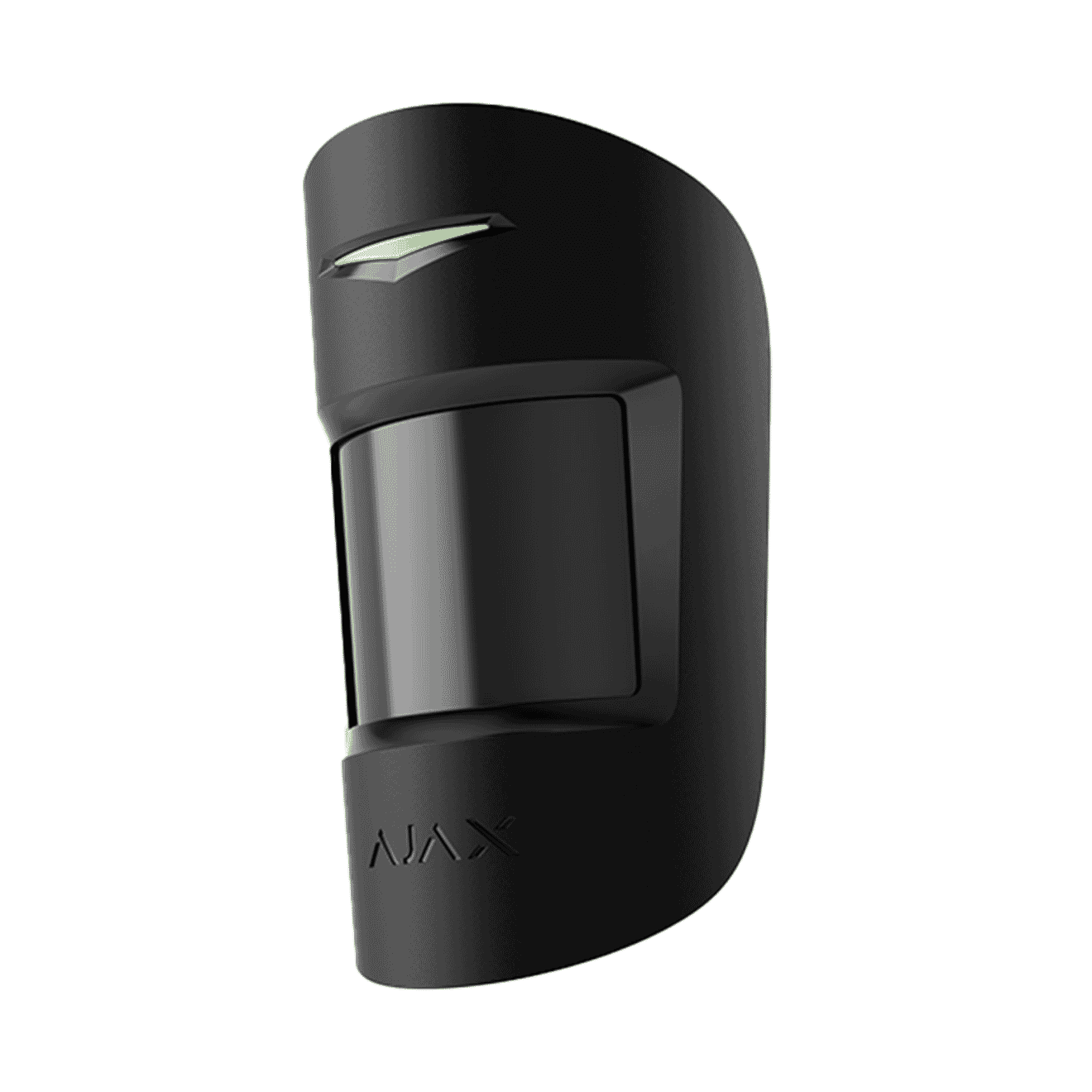

| Complete set | CombiProtect S Jeweller SmartBracket mounting panel with holding screw CR123A battery (pre-installed) Installation kit Quick start guide |
