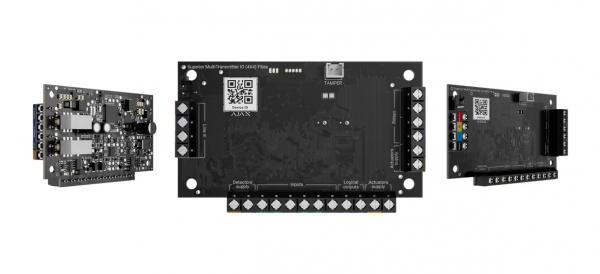

Ajax Superior MultiTransmitter IO (4X4) Fibra

 Fibra communication technology

Proprietary wired communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced sabotage protection.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Line connection

4-core cable

Connection

to any point of the Fibra line

The device can be installed behind the hub or any other device.

Fibra line length

up to 2,000 m

When the U/UTP cat.5 twisted pair cable is used.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Number of input lines for third-party devices

4

Input terminals

• Z1–Z4 — inputs for connecting third-party wired devices.
• COM — common inputs for connecting signal contacts of third-party wired devices.

Type of connection

NO, NC, EOL, 2EOL, 3EOL, roller shutter

With the EOL total resistance from 1 kΩ to 15 kΩ with a 100 Ω increment.
