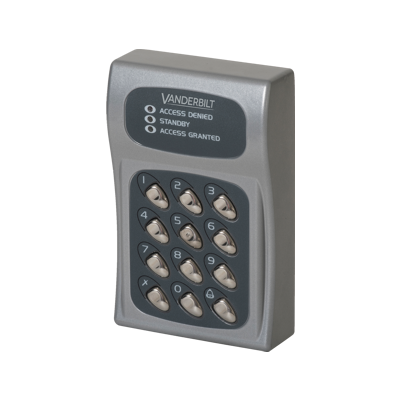

The ACT 10 digital keypad supports 10 user PIN codes with 2 output relays. It is a durable unit made from vandal resistant die cast zinc with backlit stainless steel keys. This multi-purpose keypad caters for Interlock, fire alarm input, door monitoring.
| Impact rating: | IK10 |
| Operating temperature: | -40 to +70°C |
| Weight: | 0.7kg |
| Users: | 10 |
| Door capacity: | 2 |
| Dimensions (L x W x H): | 138mm x 87mm x 37mm |
| Current consumption: | 40mA (nominal), 120mA (max) |
| Operating voltage: | 12 - 24 Volts AC/DC |
| Mounting: | Surface / flush |
| Installation: | Indoor / outdoor |
| Tamper protection: | Yes |
| Housing protection: | IP55 |
| ITM No. | ITM001406 |
|---|---|
| Manufacturer | Vanderbilt |
| Type of Product | simple |
| New Product | No |
