POC - MAKING INSTALLATIONS A LOT SIMPLER!
Power over Coaxial (PoC) basically means that power for the camera is supplied by the DVR via coaxial video cable (RG59 or similar), this removes the requirement for separate cables and power supplies which would otherwise be needed to power your cameras. For installers this means a much more time and cost efficient
PoC can be used on cable runs up to 200 metres and is available in 4,8 and 16 channel DVRs (models ending /P), a full complement of TVI PoC cameras are also available (models ending E) which together offer a cost effective and time saving solution to your TVI installations.
PLEASE NOTE: All PoC cameras can also work on non PoC recorders
1. All PoC capable TVI cameras can be powered locally via a separate power supply allowing them to be used on a none PoC TVI DVR
2. All none PoC TVI cameras can work on a PoC capable TVI DVR as the camera is powered via a separate power supply and PoC will
only transmit when requested to by a compatible camera
3. PoC transmission has generally been used through RG59 coaxial or similar cable, however with the release of our HAY-HDVB01POC-PT it can now also be used through CAT5 offering even greater flexibility of install.

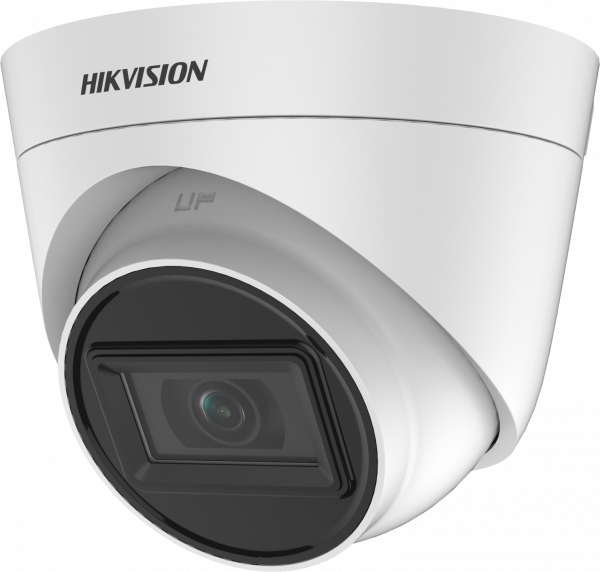

- 5MP high performance CMOS
- Adopts HD-TVI technology
- 2.8mm fixed lens
- True day/night
- OSD menu
- Smart IR
- EXIR technology
- Up to 40m IR distance
- Up the Coax telemetry
- Digital wide dynamic range
- 12V DC
- Additional Information
Product Type Camera Lens 2.8mm Fixed Lens Megapixel 5MP Max Resolution 2560 x 1944 IR Range 40m Internal / External External IP Rating IP67 WDR Yes Vandal Resistant No Power 12V DC & PoC.af Manufacturer Hikvision Box Quantity No
