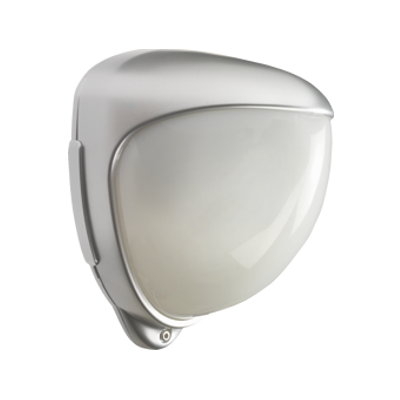

GJD430 - D-TECT X MKIII

30m Wireless Motion Detector

The BS8418 compliant D-TECT X detectors all feature quad PIR sensor modules, stylish IP65 fully tampered housings with a discreet internal antenna. Units accept 2 x 3 volt CR123 batteries, 500m RF transmission range on 868MHz and individual code for pairing to the receiver. The receiver (GJD392) can be linked in its base form to 4 detectors and this can then be expanded up to 16 detectors, with the use of the GJD393 4-way expansion module. Due to the number

  • Transmission Range: 500m line of sight
  • Detection Range: 30 x 30m
  • Detector orientation: 180° pan & 90° tilt
  • Mounting Height: Up to 6m - Optimum 3m
  • Tamper Switches: Front & rear tamper switches, case open and removal from wall
  • Pulse Count: 1 - 2
  • Photocell: Dusk (2 Lux) to 24 hour
  • Housing: High Impact ABS
  • Protection Rating: IP65

More Information
New Product No
Type of Product simple
Detection Range 30m
