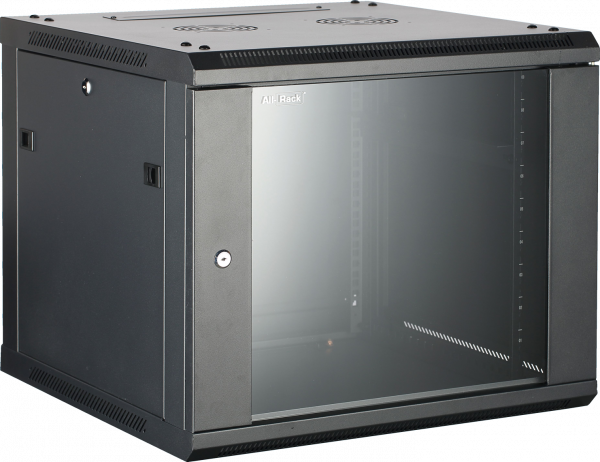

All-Rack Wall Mount Data Cabinet

Availability: In stock



All-Rack Wall Mount Data Cabinet 6U 600mm Wide X 550mm Deep Black, Data Rack, Network Cabinet

Width: 600mm
External Depth: 550mm
Usable Depth: 450mm
Height: 349mm
Weight: 17KG

Loading Capacity: 40KG

Doors: 180 degree opening angle and can be mounted on left & right hand side with simple spring latch

Security: Lockable doors and side panels

Ventilation: Optional fan can be fitted if required


1.2mm mild steel construction

Toughened glass panel in steel framework door

Racks: Supplied with depth adjustable heavy-duty steel mounting profiles to take industry standard 19’’ patch panels, switches and other equipment.

Doors: Lockable, removable glazed front door. Lockable and removable steel side panels

Ventilation: Side panels vented. The roof has a cutout for 2 fan units top be mounted directly

Cable Entry: Cable access points on the lid and base of cabinet.

Additional Information

Additional Information

Manufacturer No
Product Type No
Box Quantity No
Related Products
View File CAB6WB550BL spec Size: (403.18 KB)
